Products

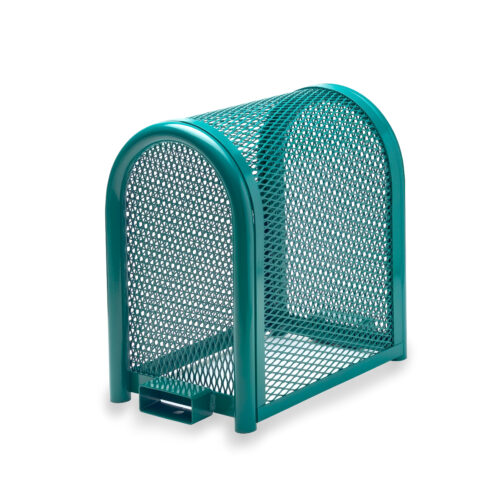

Backflow Cage GE-0.5 (Lift off) Green
Internal Dimensions: (11 1/8" W x 20" H x 16" L) Outside Dimensions: (13 3/8" W x 20" H x 20 3/8" L) Weight: 30 LBS Color: Green
Backflow Cage GE-0.5 (Lift off) Tan
Internal Dimensions: (11 1/8" W x 20" H x 16" L) Outside Dimensions: (13 3/8" W x 20" H x 20 3/8" L) Weight: 30 LBS Color: Tan

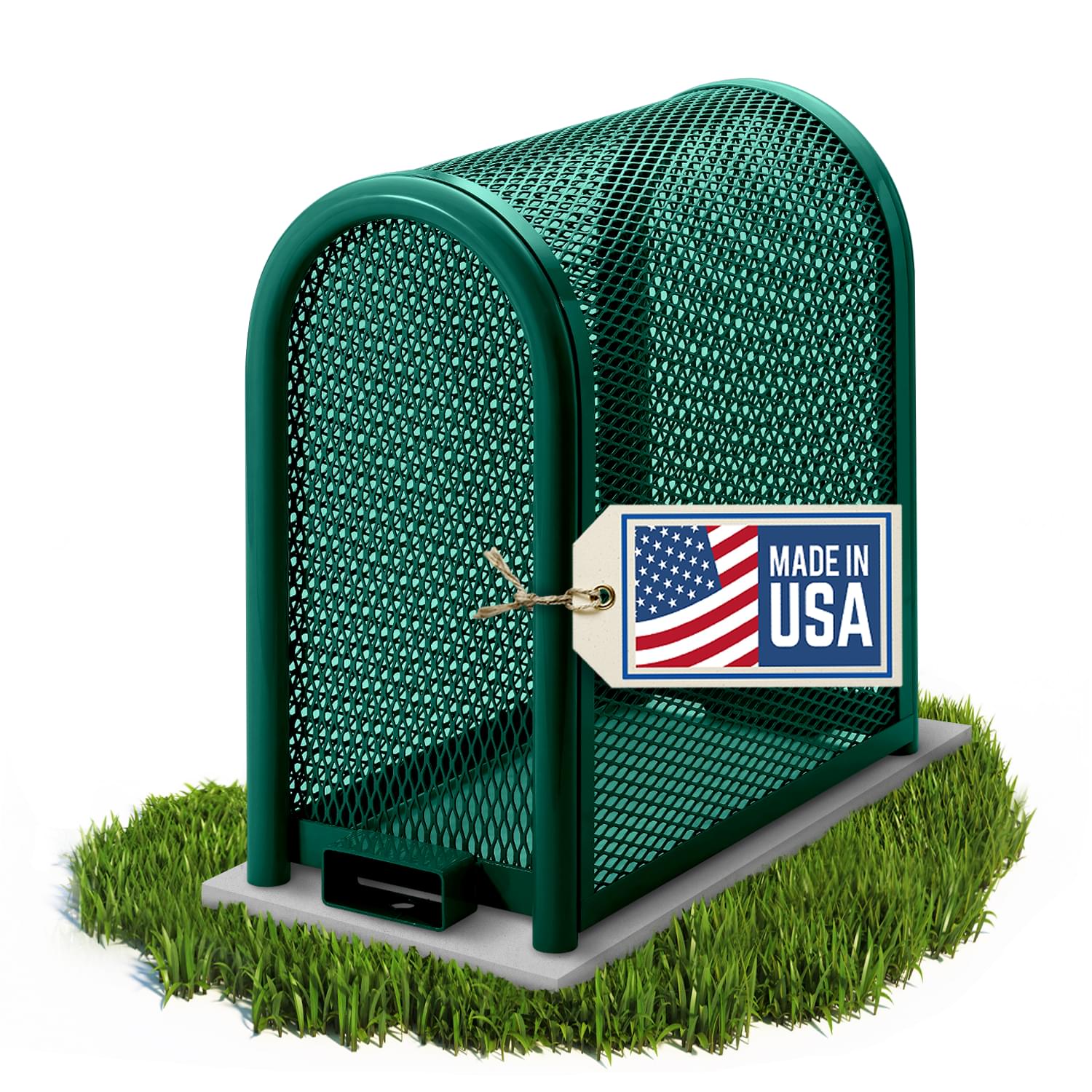

Backflow Cage GE-1(Lift off) Green
Internal Dimensions: (11 1/8" W x 24" H x 23" L) Outside Dimensions: (13 3/8" W x 24" H x 27 3/8" L) Weight: 40 LBS Color: Green
Backflow Cage GE-1(Lift off) Tan
Internal Dimensions: (11 1/8" W x 24" H x 23" L) Outside Dimensions: (13 3/8" W x 24" H x 27 3/8" L) Weight: 40 LBS Color: Tan
Backflow Cage GE-2(Lift off) Green
Internal Dimensions: (11 1/8" W x 24" H x 30" L) Outside Dimensions: (13 3/8" W x 24" H x 34 3/8" L) Weight: 45 LBS Color: Green
Backflow Cage GE-2(Lift off) Tan
Internal Dimensions: (11 1/8" W x 24" H x 30" L) Outside Dimensions: (13 3/8" W x 24" H x 34 3/8" L) Weight: 45 LBS Color: Tan
Backflow Cage GE-3(Lift off) Green
Internal Dimensions: (11 1/8" W x 24" H x 40" L) Outside Dimensions: (13 3/8" W x 24" H x 44 3/8" L) Weight: 53 LBS Color: Green
Backflow Cage GE-3(Lift off) Tan
Internal Dimensions: (11 1/8" W x 24" H x 40" L) Outside Dimensions: (13 3/8" W x 24" H x 44 3/8" L) Weight: 53 LBS Color: Tan
Backflow Hinged Cage GE-4 Green
Internal Dimensions: (16”W x 30”H x 48”L) Outside Dimensions: (18 3/8”W x 30”H x 52 3/8”L) Weight: 75 LBS Color: Green

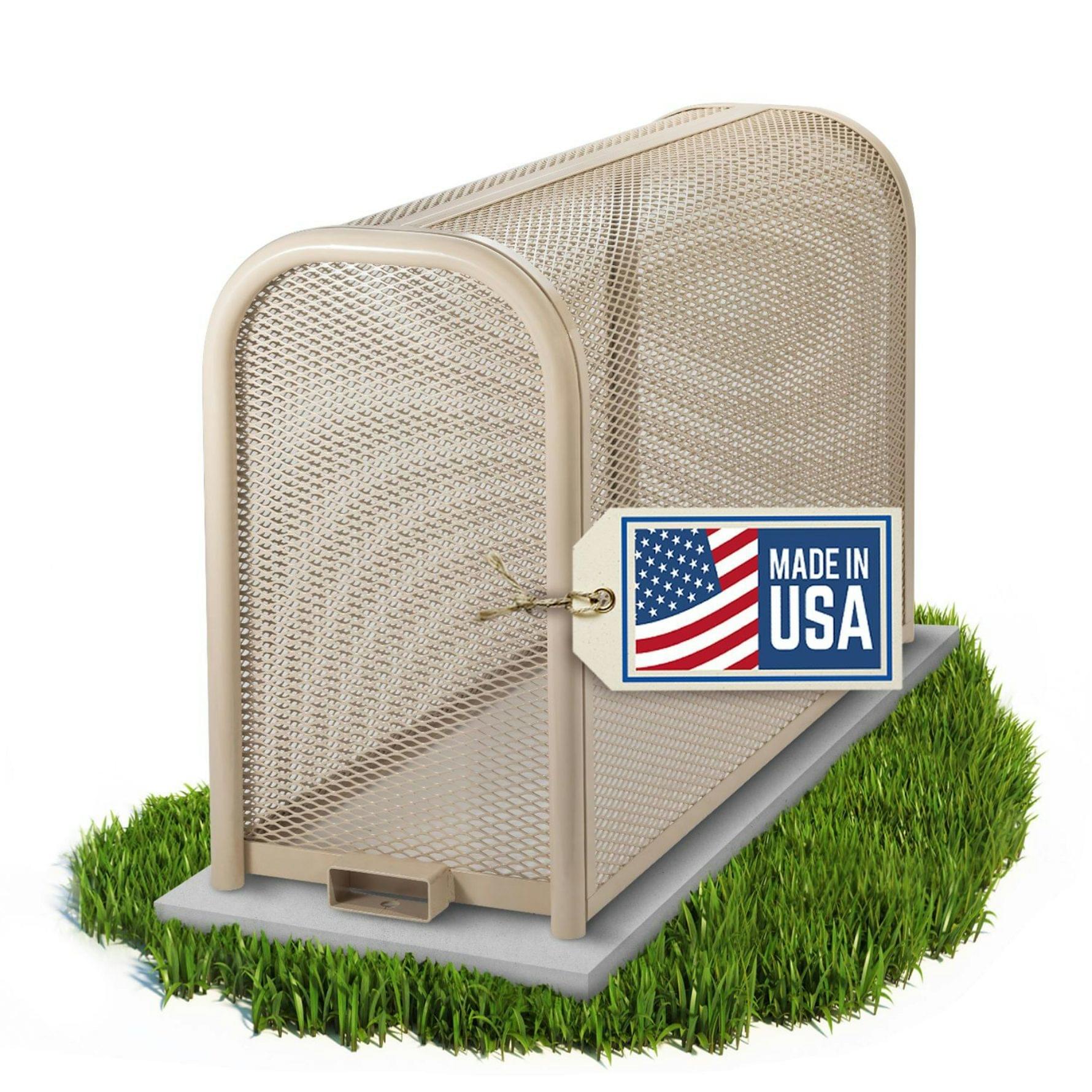

Backflow Hinged Cage GE-4 Tan
Internal Dimensions: (16”W x 30”H x 48”L) Outside Dimensions: (18 3/8”W x 30”H x 52 3/8”L) Weight: 75 LBS Color: Tan

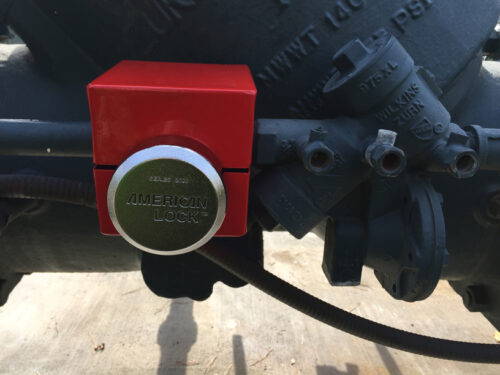

Lock box 3/4″ Bypass Ball Valve Covers
3/4" Bypass Union Covers. Body is 4" Plat Plate, A500, 4” Square Weld Tube. Hinge is 2 1/2" Hinge. Tabs are Weld-on Tabs with 7/16" holes for secure mounting.
OS&Y Stem Protectors
A stem protector, used to shield 3″ to 11″ stems Dimensions: (10 × 12 × 10) in. Base is HR Steel, R 10" Gauge. Cable is 3/16" x 19"L Wire Rope. Sign Post is Galvanized Steel, 2" x 11" L Square Tube. Weld-on Tab is 1"W x 1 5/8"L. Cap...
Pipe Support GE-PS-Large-Black
Pipe sizes from 2 1/2" to 10", as well as hydrant backflows. Tube is 1 1/2" steel tube. Base Plate is 6" x 6" HR Steel, 10 gauge. Saddle is 3/16" x 1 1/2" flat steel with U bend. Nut is 2"with 1" - 8 thread. Washer is 2 1/2"...
Pipe Support GE-PS-Medium-Black
Pipe sizes from 2 1/2" to 10". Tube is 1 1/2" steel tube. Base Plate is 6" x 6" HR Steel, 10 gauge. Saddle is 3/16" x 1 1/2" flat steel with U bend. Nut is 2"with 1" - 8 thread. Washer is 2 1/2" with 1" hole. All Thread...
Pipe Support GE-PS-Small-Black
Tubes is 1 1/2" steel tube. Base Plate is 6" x 6" HR Steel, 10 gauge. Saddle is 3/16" x 1 1/2" flat steel with U bend. Nut is 2"with 1" - 8 thread. Washers is 2 1/2" with 1" hole. All Thread is 1” SAE TYPE A Narrow.
Custom
Not all systems are the same — and neither are our enclosures. We offer fully customizable solutions Designed to match your specific equipment, size, and security requirements. How It Works: 1. Share Your Measurements 2. We Design & Approve 3. Manufacturing & Delivery. Form: Upload drawings / specs
Reviews
The cages are very strong, made with a superior quality material.
Also, they have an amazing customer service, always willing to help with anything .
I recommend them 100%.
I highly recommend Guardian Enclosures.
